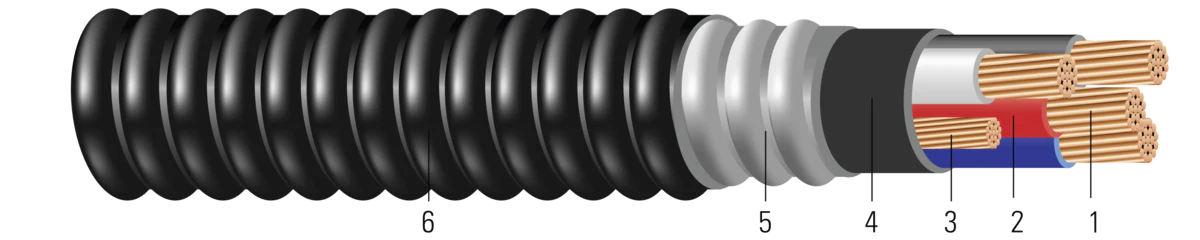

XLPE/PVC/AIA/PVC, control and power, armored 1000 V, CSA TECK90, Three conductor. 14 AWG thru 8 AWG bare copper Class B compressed concentric round to ASTM B8. 6 AWG thru 1000 kcmil bare copper compact Class B strand. Cross-linked Polyethylene (XLPE), Type RW90. The conductor consists of one uninsulated stranded bare copper conductor. Lead-free, flame-retardant, moisture- and sunlight-resistant Polyvinyl Chloride (PVC), black. Aluminum Interlocked Armor (AIA). Lead-free, ACID-FLAME-CHECK® flame retardant, moisture- and sunlight-resistant Polyvinyl Chloride (PVC), black. Galvanized Steel Interlocked Armor (GSIA). Rated at 90°C wet or dry. Excellent crush resistance, oil and chemical resistance. Provides long service life. Meets cold bend and impact tests at -40°C.
1
/
of
1
Kindred Electric
6/3 TECK CABLE 75M ROLL
6/3 TECK CABLE 75M ROLL
Regular price
$1,875.00
Regular price
Sale price
$1,875.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Brand Name | Approved Vendor | Item Name | TECK90 Cable |
| Wire Gauge Size | 6 AWG | Number of Conductors | 3 |
| Jacket Color | Black | Voltage Rating | 1000 V |
| Temperature Rating | 90 °C | Standards | HL, FT4 Rated |
